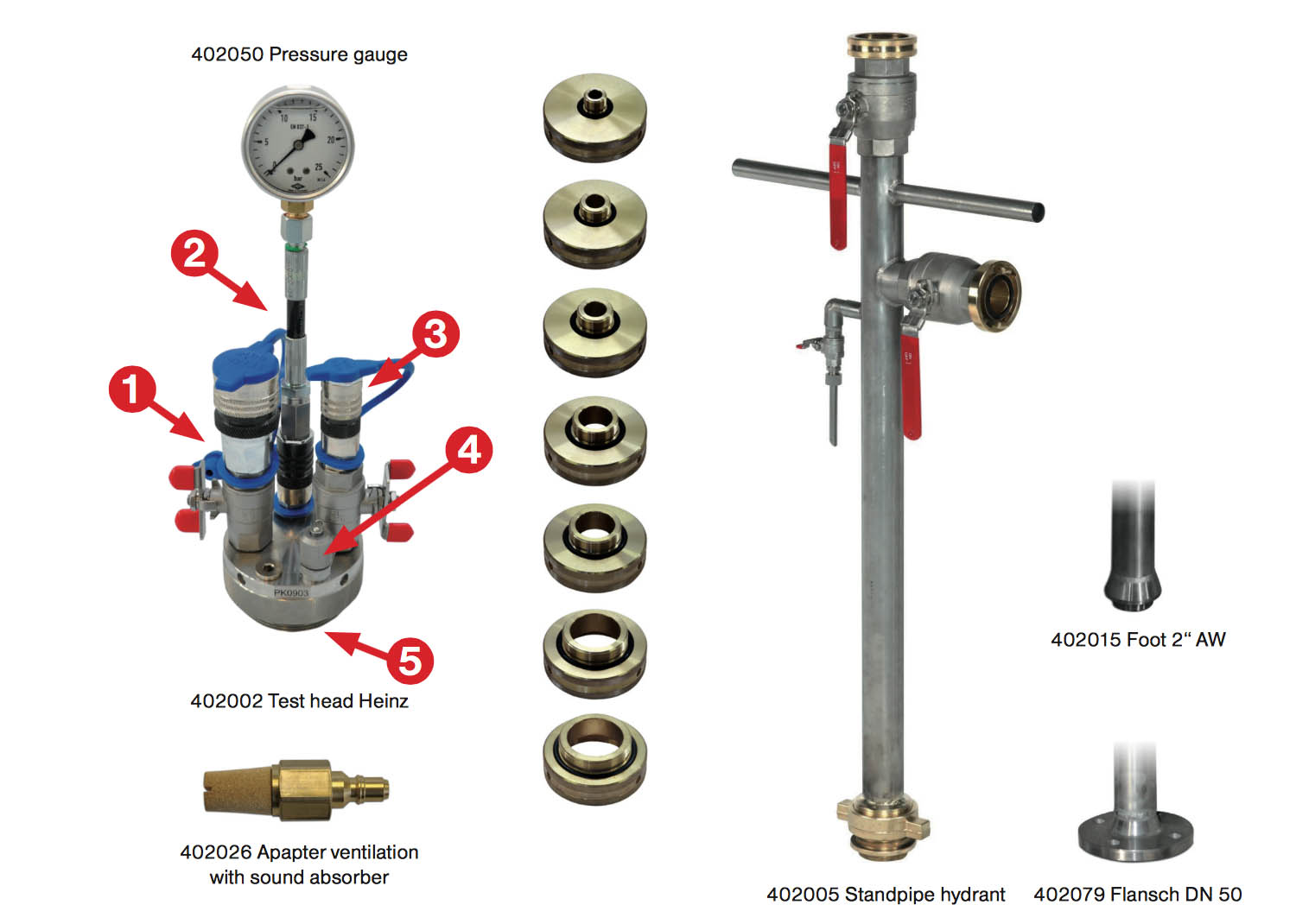

The TEST HEAD ‘HEINZ’ AND ASSOCIATED ADAPTORS
The Test head “Heinz” provides practical connections and the test adapters ensure a truly watertight transition to many different screw threads and fittings
1, Pressure connection with large coupling for high flow rates.
2. Connection for pressure control gauge
3. Discharge coupling with ball valve for discharge hose or sound damper
4. Minimess connection for the DruckTest memo measurement device
5. Connection thread for a wide range of testing adapters – O-ring sealed
All quick-connect couplings can be locked for added safety and are protected against soiling. P-max = 60 bar
STAINLESS STEEL STANDPIPE
The testing standpipe with all its components has been designed and tested for pressures of up to 30 bar. A Storz-C connection is provided for the water intake. The testing body can be fitted directly into the upper connector. Both connections are fitted with DN 50 stainless-steel ball valves. An additional valve is provided to allow sampling.
